Cube Ice Machine LIC-30SHome > Products > Cube Ice Machine> Large Type
  • Main Features
  • Specifications
  • Download

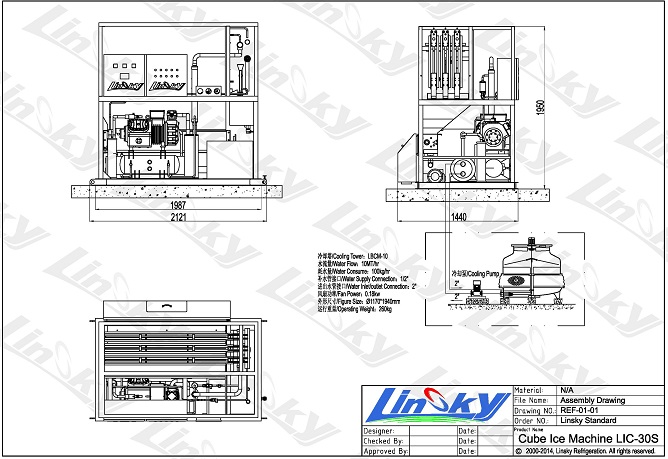

  • Layouts
  • Performance Parameters
  • 10% ice production higher than ordinary cube ice machine;
  • Utilize high quality SUS304 and ABS material, stylish shape but solid and reliable performance;
  • The use of imported high quality components, in line with European CE and American UL, NSF certification;
  • PLC program control to operate the machine producing and harvesting ice;
  • Compact design, easy to install and operate.

Specification of Cube Ice Machine LIC-30S

Item Specification Unit
Power supply 380V/3P/50Hz Voltage/Phase/Frequency
Refrigerant R22/R404A
Daily capacity 3000kg/day
Cooling mode Water-cooled
Standard condition Ambient temperature 35
Water inlet temperature 25
Operating power Compressor 9.59 kw
Condenser fan 0.18 kw
Cooling tower pump 0.75 kw
Cooling water pump 0.42 kw
Warm water pump 0.37 kw
Average total 12 kw
Total install power 15 kw
Compressor Refrigeration capacity 21.3 kw
Condensing temperature 38
Evaporating temperature -20
COP. 2.22 kw/kw
Horse power 15 HP
Ice machine dimension Size 2121×1440×1950 (L×W×H )(mm)
Operating weight 1200 Kg
Pipe size 1/2" inch
Water supply pressure requirement 1~6 bar
Cooling tower module size Cooling tower size ∅1170x1940 (O.D.×H)(mm)
Feed pipe size 1/2'' inch
Cooling water pipe size 2'' inch
Operating weight 260 Kg
Parts info Compressor Bitzer, Germany
Expansion valve ALCO, United States
Stop valve DANFOSS, Denmark
Solenoid valve DANFOSS, Denmark
Filter ALCO, United States
Button/indicator Schneider, France
Electrical Schneider, France
PLC SIEMENS, Germany

Note: Actual Production= Theory Production×WT×AT

Linsky ice machine production will be affected by environment. The main factors are ambient temperature and water inlet temperature. Based on long term actual experiment, Linsky records precise experiment data and conclude chart WT and AT.

When water inlet temperature exceeds 30℃, it is suggested to pre-cool the water by chiller.
When ambient temperature exceeds 45℃, it is suggested to use water-cooled condenser or tailor made your machine.
