Block Ice Machine LIB-50BCHome > Products > Block Ice Machine> Containerized Type
  • Main Features
  • Specifications
  • Download
  • Layouts
  • Performance Parameters
  • Mobile block ice plant, suitable for seasonal catches;
  • High quality components such as Bitzer compressor, Danfoss valves, Siemens PLC, Schneider Electrical etc;
  • Pre-fabricated system, no need to connect pipes and wirings;
  • No need to build a house, shorten the installation time;
  • Convenient transportation, suitable for road, rail and ocean shipping;

Specification of Block Ice Machine LIB-50BC

Item Specification Unit
Power supply 380V/3P/50Hz Voltage/Phase/Frequency
Refrigerant R22/R404A
Daily capacity 5000kg/day
Cooling mode Water-cooled
Standard condition Ambient temperature 35
Water inlet temperature 25
Operating Power Compressor 17.86 kw
Cooling tower fan 0.55 kw
Cooling tower pump 1.5 kw
Cooling pump 0.55 kw
Average total 20.15 kw
Total install power 24 kw
Compressor Refrigeration capacity 43.8 kw
Condensing temperate 38
Evaporating temperature -18
COP. 2.45 kw/kw
Horse power 28 HP
Ice size range Weight range 20~100 kg
Thickness range 100/125/160/220 mm
Height range 600/800/1000 mm
Ice specification Dimension 300X125X850 (L×W×H )(mm)
Weight 25 Kg
Ice quantity 72 PC/time
Harvest times 3 times/day
Period Ice making time 8 hr/time
Ice defrost time 10 min/time
Cooling tower module size Cooling tower size ∅1380x2170 (O.D.×H)(mm)
Feed pipe size 1/2'' inch
Cooling water pipe size 2'' inch
Operating weight 460 Kg
Container info Size 6058x2438x2591 (L×W×H)(mm)
Operating weight 5600 Kg
Parts info Compressor Bitzer, Germany
Expansion valve ALCO, United States
Stop valve DANFOSS, Denmark
Solenoid valve DANFOSS, Denmark
Filter ALCO, United States
Button/indicator Schneider, France
Electrical Schneider, France

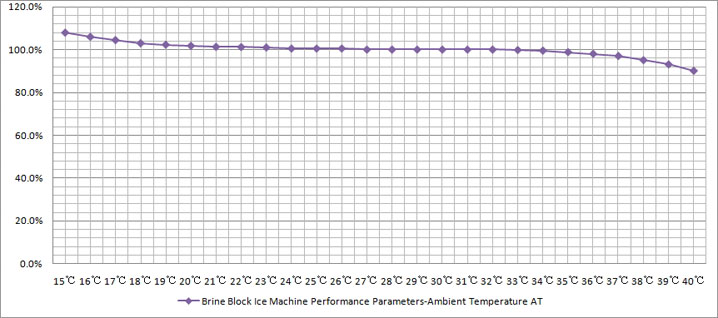

Note: Actual Production= Theory Production×WT×AT

Linsky ice machine production will be affected by environment. The main factors are ambient temperature and water inlet temperature. Based on long term actual experiment, Linsky records precise experiment data and conclude chart WT and AT.

When water inlet temperature exceeds 30℃, it is suggested to pre-cool the water by chiller.
When ambient temperature exceeds 45℃, it is suggested to use water-cooled condenser or tailor made your machine.
