Flake Ice Machine LIF-20SHome > Products > Flake Ice Machine> Seawater Type
- High efficiency heat transfer technology;
- Spiral blade design decreases resistance and friction, flake ice 100% fall off;
- Specialized processing technology ensures long service time evaporator;
- Quality material and components adopted to protect the equipment from sea-water corrosion;
- Advanced technology innovated specially for onboard use. Even in the worst case, anti-pitching design ensures a smooth operation;
- Reliable operation, little maintenance.
Specification of Flake Ice Machine LIF-20S
| Item | Specification | Unit | |
|---|---|---|---|
| Power supply | 380V/3P/50Hz | Voltage/Phase/Frequency | |
| Refrigerant | R22/R404A | ||
| Daily capacity | 2000kg/day | ||
| Cooling mode | Water-cooled | ||
| Standard condition | Ambient temperature | 35 | ℃ |
| Water inlet temperature | 25 | ℃ | |
| Operating power | Compressor | 6.15 | kw |
| Cooling tower pump | 0.7 | kw | |
| Reducer | 0.35 | kw | |
| Cooling water pump | 0.035 | kw | |
| Average total | 6.535 | kw | |
| Total install power | 8.7 | kw | |
| Compressor | Refrigeration capacity | 11.8 | kw |
| Condensing temperature | 38 | ℃ | |
| Evaporating temperature | -26 | ℃ | |
| COP. | 1.92 | kw/kw | |
| Horse power | 8 | HP | |

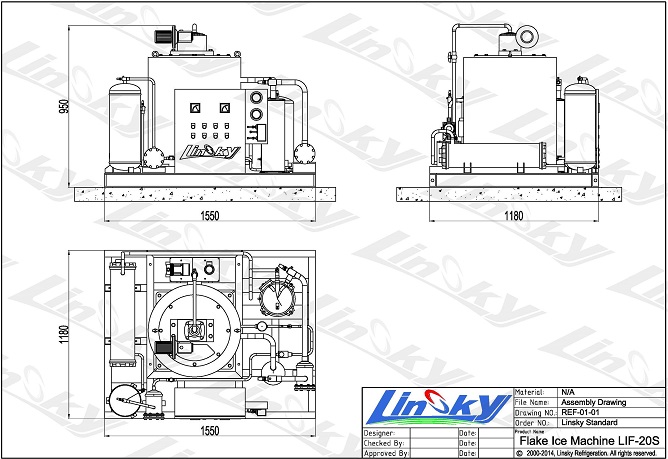

| Ice machine dimension | Size | 1550×1180×950 | （L×W×H）（mm） |
| Net weight | 668 | kg | |
| Pipe size | 1/2" | inch | |
| Water supply pressure requirement | 1～6 | bar | |
| Parts info | Compressor | Copeland,United States | |
| Expansion valve | ALCO, United States | ||
| Stop valve | DANFOSS, Denmark | ||
| Solenoid valve | DANFOSS, Denmark | ||
| Filter | ALCO, United States | ||
| Button/indicator | Schneider, France | ||
| Electrical | Schneider, France | ||
| PLC | SIEMENS, Germany | ||
Note: Actual Production= Theory Production×WT×AT
Linsky ice machine production will be affected by environment. The main factors are ambient temperature and water inlet temperature. Based on long term actual experiment, Linsky records precise experiment data and conclude chart WT and AT.
When water inlet temperature exceeds 30℃, it is suggested to pre-cool the water by chiller.
When ambient temperature exceeds 45℃, it is suggested to use water-cooled condenser or tailor made your machine.
