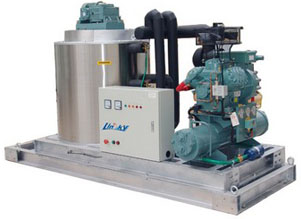

Flake Ice Machine LIF-40SHome > Products > Flake Ice Machine> Seawater Type
  • Main Features
  • Specifications
  • Download
  • Layouts
  • Performance Parameters
  • High efficiency heat transfer technology;
  • Spiral blade design decreases resistance and friction, flake ice 100% fall off;
  • Specialized processing technology ensures long service time evaporator;
  • Quality material and components adopted to protect the equipment from sea-water corrosion;
  • Advanced technology innovated specially for onboard use. Even in the worst case, anti-pitching design ensures a smooth operation;
  • Reliable operation, little maintenance.

Specification of Flake Ice Machine LIF-40S

Item Specification Unit
Power supply 380V/3P/50Hz Voltage/Phase/Frequency
Refrigerant R22/R404A
Daily capacity 4000kg/day
Cooling mode Water-cooled
Standard condition Ambient temperature 35
Water inlet temperature 25
Operating power Compressor 11.75 kw
Cooling tower pump 1.5 kw
Reducer 0.37 kw
Cooling water pump 0.03 kw
Average total 13.83 kw
Total install power 16 kw
Compressor Refrigeration capacity 25.2 kw
Condensing temperature 38
Evaporating temperature -26
COP. 2.14 kw/kw
Horse power 20 HP

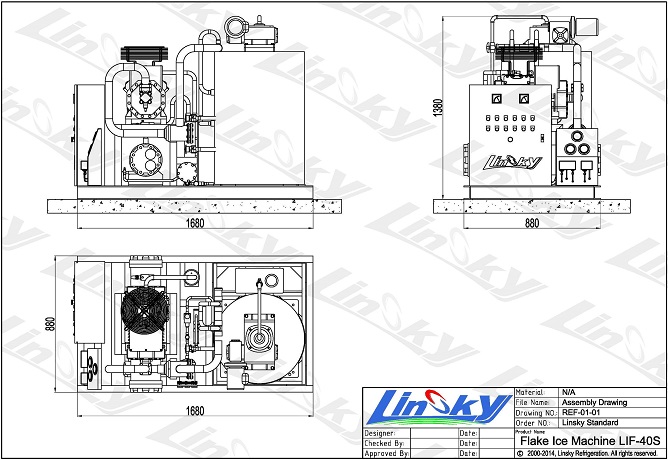

Ice machine dimension Size 1680×880×1380 (L×W×H)(mm)
Net weight 980 kg
Pipe size 3/4" inch
Water supply pressure requirement 1~6 bar
Parts info Compressor Bitzer, Germany
Expansion valve ALCO, United States
Stop valve DANFOSS, Denmark
Solenoid valve DANFOSS, Denmark
Filter ALCO, United States
Button/indicator Schneider, France
Electrical Schneider, France

Note: Actual Production= Theory Production×WT×AT

Linsky ice machine production will be affected by environment. The main factors are ambient temperature and water inlet temperature. Based on long term actual experiment, Linsky records precise experiment data and conclude chart WT and AT.

When water inlet temperature exceeds 30℃, it is suggested to pre-cool the water by chiller.
When ambient temperature exceeds 45℃, it is suggested to use water-cooled condenser or tailor made your machine.
