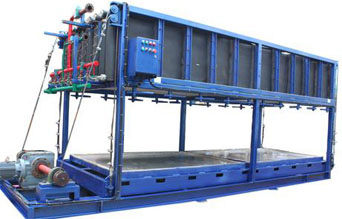

Block Ice Machine LIB-100DHome > Products > Block Ice Machine> Aluminum Direct Type
  • Main Features
  • Specifications
  • Download
  • Layouts
  • Performance Parameters
  • Aluminum plate evaporator directly transfer heat to water, ice making process is fast and efficiency is increased;
  • All parts contact with ice or water is made of aluminum alloy or SUS304, ice comply with food hygiene requirement;
  • Evaporator use aerospace level specialized aluminum material, high strength and good heat transfer performance;
  • Hot freon gas doffing method, realize fast ice doffing process and it only takes 15 minutes;
  • Automatic water adding system, more intelligent and easier operation;
  • Mechanical design makes taking ice out easier.

Specification of Block Ice Machine LIB-100D

Item Specification Unit
Power supply 380V/3P/50Hz Voltage/Phase/Frequency
Refrigerant R22/R404A
Daily capacity 10ton/day
Cooling mode Water-cooled
Standard condition Ambient temperature 35
Water inlet temperature 25
Operating Power Compressor 15.85X2 kw
Cooling tower fan 1.1 kw
Cooling tower pump 2.2 kw
Lifting mechanism reducer 2.2 kw
Water adding pump 0.75 kw
Average total 34.8 kw
Total install power 46.4 kw
Compressor Refrigeration capacity 40.7X2 kw
Condensing temperature 38
Evaporating temperature -15
COP. 2.57 kw/kw
Horse power 25X2 HP
Compressor Nos 2 unit
Ice size range Weight range 20~100 kg
Thickness range 100/125/160/220 mm
Height range 600/800/1000 mm
Ice specification Dimension 300×100×780 (L×W×H )(mm)
Weight 20 Kg
Ice quantity 128 PC
Harvest times 4 times/day
Period Ice making time 5.5 hr/time
Ice defrost time 0.5 hr/time
Compressor module size Dimension 1800×1600×1800 (L×W×H )(mm)
Net weight 1680 Kg
Evaporator module size Size 5566×1355×2300 (L×W×H )(mm)
Net weight 3750 Kg
Pipe size 1-1/4'' inch
Water supply pressure requirement 1~6 bar
Cooling tower module size Cooling tower size ∅2000x2410 (O.D.×H)(mm)
Feed pipe size 3/4'' inch
Cooling water pipe size 2-1/2'' inch
Operating weight 670 Kg
Parts info Compressor Bitzer, Germany
Expansion valve ALCO, United States
Stop valve DANFOSS, Denmark
Solenoid valve DANFOSS, Denmark
Filter ALCO, United States
Button/indicator Schneider, France
Electrical Schneider, France
PLC SIEMENS, Germany

Note: Actual Production= Theory Production×WT×AT

Linsky ice machine production will be affected by environment. The main factors are ambient temperature and water inlet temperature. Based on long term actual experiment, Linsky records precise experiment data and conclude chart WT and AT.

When water inlet temperature exceeds 30℃, it is suggested to pre-cool the water by chiller.
When ambient temperature exceeds 45℃, it is suggested to use water-cooled condenser or tailor made your machine.
