Block Ice Machine LIB-10DHome > Products > Block Ice Machine> Aluminum Direct Type
  • Main Features
  • Specifications
  • Download
  • Layouts
  • Performance Parameters
  • Aluminum plate evaporator directly transfer heat to water, ice making process is fast and efficiency is increased;
  • All parts contact with ice or water is made of aluminum alloy or SUS304, ice comply with food hygiene requirement;
  • Evaporator use aerospace level specialized aluminum material, high strength and good heat transfer performance;
  • Hot freon gas doffing method, realize fast ice doffing process and it only takes 15 minutes;
  • Automatic water adding system, more intelligent and easier operation;
  • Mechanical design makes taking ice out easier.

Specification of Block Ice Machine LIB-10D

Item Specification Unit
Power supply 380V/3P/50Hz Voltage/Phase/Frequency
Refrigerant R22/R404A
Daily capacity 1000kg/day
Cooling mode Air-cooled
Standard condition Ambient temperature 35
Water inlet temperature 25
Operating power Compressor 3.6 kw
Condenser fan 0.5 kw
Lifting mechanism reducer 0.25 kw
Pump 0.25 kw
Average total 4.2 kw
Total install power 5.4 kw
Compressor Refrigeration capacity 7.91 kw
Condensing temperature 45
Evaporating temperature -15
COP. 2.2 kw/kw
Horse power 6 HP
Ice size range Weight range 5~20 kg
Thickness range 100/125/160/220 mm
Height range 600/800/1000 mm
Ice specification Dimension 100×100×580 (L×W×H)(mm)
Weight 5 kg
Ice quantity 50 pc
Harvest times 4 times/day
Period Ice making time 5.5 hr/time
Ice defrost time 0.5 hr/time
Ice machine dimension Size 2455×935×2018 (L×W×H)(mm)
Net weight 950 kg
Pipe size 3/4" inch
Water supply pressure requirement 1~6 bar
Parts info Compressor Copeland, United States
Expansion valve ALCO, United States
Stop valve DANFOSS, Denmark
Solenoid valve DANFOSS, Denmark
Filter ALCO, United States
Button/indicator Schneider, France
Electrical Schneider, France

Note: Actual Production= Theory Production×WT×AT

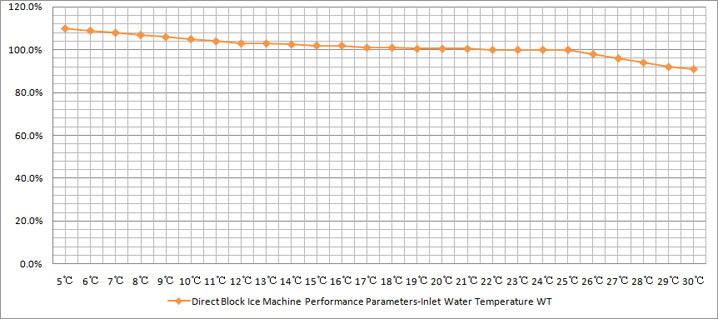

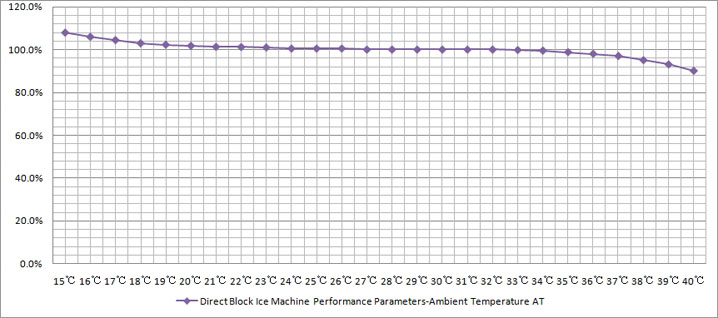

Linsky ice machine production will be affected by environment. The main factors are ambient temperature and water inlet temperature. Based on long term actual experiment, Linsky records precise experiment data and conclude chart WT and AT.

When water inlet temperature exceeds 30℃, it is suggested to pre-cool the water by chiller.
When ambient temperature exceeds 45℃, it is suggested to use water-cooled condenser or tailor made your machine.
