Tube Ice Machine LIT-100KAHome > Products > Tube Ice Machine> Commercial Capacity
  • Main Features
  • Specifications
  • Download

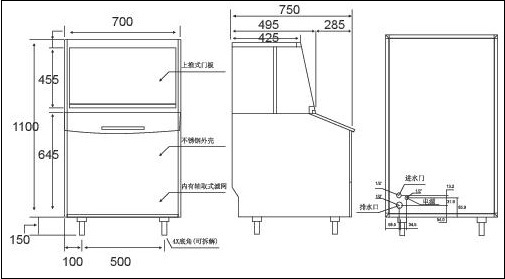

  • Layouts
  • Performance Parameters
  • Large reservoir collect heat to defrost ice, ice harvesting time only takes 120 seconds;
  • Use stainless steel ice blade without ice stuck headache;
  • Adopts Danfoss scroll compressor making refrigeration system more stable and reliable;
  • The shell is made of SUS304 and bended by CNC cutting machine, upscale, elegant and hygiene;
  • Ice machine automatically stops and resets itself when ice is full in its ice bin;
  • Variable frequency controls high pressure, it is more energy saving and will not be affected by environment temperature.

Specification of Tube Ice Machine LIT-100KA

Item Specification Unit
Power supply 220V/1P/50Hz Voltage/Phase/Frequency
Refrigerant R404A
Cooling mode Air-cooled
Standard condition Ambient temperature 35
Water inlet temperature 25
Operating power Total running power 600 W
Install power 750 W
Main parameters Capacity 100 Kg/day
Ice storage capacity 100 Kg
Net weight 75 Kg
Dimension 700×750×1250 (W×D×H)(mm)
Water supply pressure requirement 1~6 bar
Parts info Compressor ASPERA, Italy
Condenser fan EBM-Germany
Expansion valve DANFOSS, Denmark
Dry filter DANFOSS, Denmark
Solenoid valve DANFOSS, Denmark
Water solenoid valve SAGINOMIYA, Japan
Pump MORRILL, United States

Note: Actual Production= Theory Production×WT×AT

Linsky ice machine production will be affected by environment. The main factors are ambient temperature and water inlet temperature. Based on long term actual experiment, Linsky records precise experiment data and conclude chart WT and AT.

When water inlet temperature exceeds 30℃, it is suggested to pre-cool the water by chiller.
When ambient temperature exceeds 45℃, it is suggested to use water-cooled condenser or tailor made your machine.
