Tube Ice Machine LIT-200KAHome > Products > Tube Ice Machine> Commercial Capacity
- Large reservoir collect heat to defrost ice, ice harvesting time only takes 120 seconds;
- Use stainless steel ice blade without ice stuck headache;
- Adopts Danfoss scroll compressor making refrigeration system more stable and reliable;
- The shell is made of SUS304 and bended by CNC cutting machine, upscale, elegant and hygiene;
- Ice machine automatically stops and resets itself when ice is full in its ice bin;
- Variable frequency controls high pressure, it is more energy saving and will not be affected by environment temperature.
Specification of Tube Ice Machine LIT-200KA
| Item | Specification | Unit | |
|---|---|---|---|
| Power supply | 220V/1P/50Hz | Voltage/Phase/Frequency | |
| Refrigerant | R404A | ||
| Cooling mode | Air-cooled | ||
| Standard condition | Ambient temperature | 35 | ℃ |
| Water inlet temperature | 25 | ℃ | |
| Operating power | Total running power | 900 | W |
| Install power | 1200 | W | |
| Main parameters | Capacity | 200 | Kg/day |
| Ice storage capacity | 145 | Kg | |
| Net weight | 100 | Kg | |

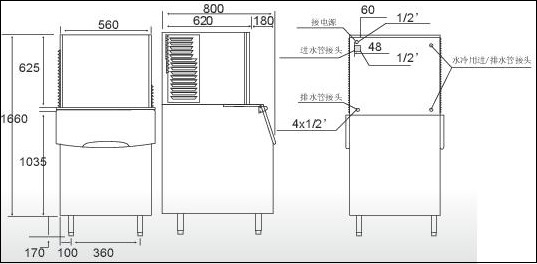

| Dimension | 560×800×1830 | （W×D×H）（mm） | |
| Water supply pressure requirement | 1～6 | bar | |
| Parts info | Compressor | ASPERA, Italy | |
| Condenser fan | EBM-Germany | ||
| Expansion valve | DANFOSS, Denmark | ||
| Dry filter | DANFOSS, Denmark | ||
| Solenoid valve | DANFOSS, Denmark | ||
| Water solenoid valve | SAGINOMIYA, Japan | ||
| Pump | MORRILL, United States | ||
Note: Actual Production= Theory Production×WT×AT
Linsky ice machine production will be affected by environment. The main factors are ambient temperature and water inlet temperature. Based on long term actual experiment, Linsky records precise experiment data and conclude chart WT and AT.
When water inlet temperature exceeds 30℃, it is suggested to pre-cool the water by chiller.
When ambient temperature exceeds 45℃, it is suggested to use water-cooled condenser or tailor made your machine.
