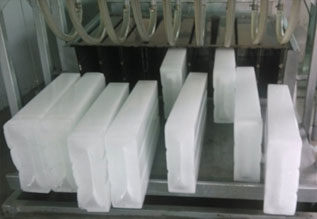

Block Ice Machine LIB-10BHome > Products > Block Ice Machine> Brine Type
  • Main Features
  • Specifications
  • Download
  • Layouts
  • Performance Parameters
  • High quality components guarantee the stable refrigeration system;
  • Unique and excellent evaporator technique ensures efficient heat transfer effect;
  • Heavy-duty overhead crane for moving, lifting and tipping the ice cans;
  • Ice can options of galvanized steel or stainless steel;
  • Modular design ensures easy installation, operation and maintenance;
  • Experienced team of installation and commissioning.

Specification of Block Ice Machine LIB-10B

Item Specification Unit
Power supply 380V/3P/50Hz Voltage/Phase/Frequency
Refrigerant R22/R404A
Daily capacity 1000kg/day
Cooling mode Air-cooled
Standard condition Ambient temperature 35
Water inlet temperature 25
Operating power Compressor 3.6 kw
Condenser fan 0.5 kw
Pump 0.25 kw
Average total 4.2 kw
Total install power 5 kw
Compressor Refrigeration capacity 7.91 kw
Condensing temperature 45
Evaporating temperature -18
COP. 2.2 kw/kw
Horse power 6 HP
Ice size range Weight range 10~100 kg
Thickness range 100/125/160/220 mm
Height range 600/800/1000 mm
Ice specification Dimension 340×125×750 (L×W×H)(mm)
Weight 25 kg
Ice quantity 14 pc
Harvest times 3 times/day
Period Ice making time 8 hr/time
Ice defrost time 10 min/time
Ice machine dimension Size 4020×1437×2871 (L×W×H)(mm)
Net weight 1560 kg
Pipe size 3/4" inch
Water supply pressure requirement 1~6 bar
Parts info Compressor Copeland, United States
Expansion valve ALCO, United States
Stop valve DANFOSS, Denmark
Solenoid valve DANFOSS, Denmark
Filter ALCO, United States
Button/indicator Schneider, France
Electrical Schneider, France

Note: Actual Production= Theory Production×WT×AT

Linsky ice machine production will be affected by environment. The main factors are ambient temperature and water inlet temperature. Based on long term actual experiment, Linsky records precise experiment data and conclude chart WT and AT.

When water inlet temperature exceeds 30℃, it is suggested to pre-cool the water by chiller.
When ambient temperature exceeds 45℃, it is suggested to use water-cooled condenser or tailor made your machine.
