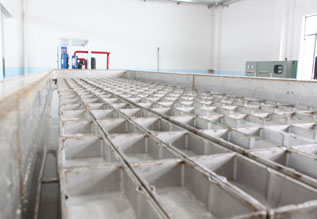

Block Ice Machine LIB-250BHome > Products > Block Ice Machine> Brine Type
- High quality components guarantee the stable refrigeration system;
- Unique and excellent evaporator technique ensures efficient heat transfer effect;
- Heavy-duty overhead crane for moving, lifting and tipping the ice cans;
- Ice can options of galvanized steel or stainless steel;
- Modular design ensures easy installation, operation and maintenance;
- Experienced team of installation and commissioning.
Specification of Block Ice Machine LIB-250B
| Item | Specification | Unit | |
|---|---|---|---|
| Power supply | 380V/3P/50Hz | Voltage/Phase/Frequency | |
| Refrigerant | R22/R404A | ||
| Daily capacity | 25000kg/day | ||
| Cooling mode | Water-cooled | ||
| Standard condition | Ambient temperature | 35 | ℃ |
| Water inlet temperature | 25 | ℃ | |
| Operating Power | Compressor | 46.8X2 | kw |
| Cooling tower fan | 2.2 | kw | |
| Cooling tower pump | 7.5 | kw | |
| Brine agitator pump | 1.25 | kw | |
| Average total | 96.84 | kw | |
| Total install power | 118 | kw | |
| Compressor | Refrigeration capacity | 111.2X2 | kw |
| Condensing temperature | 38 | ℃ | |
| Evaporating temperature | -18 | ℃ | |
| COP. | 2.38 | kw/kw | |
| Horse power | 60X2 | HP | |
| Compressor Nos | 2 | unit | |
| Ice size range | Weight range | 20～100 | kg |
| Thickness range | 100/125/160/220 | mm | |
| Height range | 600/800/1000 | mm | |
| Ice specification | Dimension | 500×160×780 | （L×W×H )（mm） |
| Weight | 50 | Kg | |
| Ice quantity | 256 | PC | |
| Harvest times | 2 | times/day | |
| Period | Ice making time | 12 | hr/time |
| Ice defrost time | 10 | min/time | |
| Compressor module size | Dimension | 2700×2200×2191 | （L×W×H )（mm） |
| Net weight | 3200 | Kg | |
| Brine tank module size | Size | 9270×2242×1070 | （L×W×H )（mm） |
| Nos | 2 | unit | |
| Net weight | 5000x2 | kg | |
| Pipe size | 1-1/4'' | inch | |
| Water supply pressure requirement | 1～6 | bar | |
| Cooling tower module size | Cooling tower size | ∅3050x2780 | （O.D.×H）（mm） |
| Feed pipe size | 1'' | inch | |
| Cooling water pipe size | 5'' | inch | |
| Operating weight | 1630 | Kg | |
| Parts info | Compressor | Bitzer, Germany | |
| Expansion valve | ALCO, United States | ||
| Stop valve | DANFOSS, Denmark | ||
| Solenoid valve | DANFOSS, Denmark | ||
| Filter | ALCO, United States | ||
| Button/indicator | Schneider, France | ||
| Electrical | Schneider, France | ||
| PLC | SIEMENS, Germany | ||
Note: Actual Production= Theory Production×WT×AT
Linsky ice machine production will be affected by environment. The main factors are ambient temperature and water inlet temperature. Based on long term actual experiment, Linsky records precise experiment data and conclude chart WT and AT.
When water inlet temperature exceeds 30℃, it is suggested to pre-cool the water by chiller.
When ambient temperature exceeds 45℃, it is suggested to use water-cooled condenser or tailor made your machine.
