Block Ice Machine LIB-20BHome > Products > Block Ice Machine> Brine Type
  • Main Features
  • Specifications
  • Download
  • Layouts
  • Performance Parameters
  • High quality components guarantee the stable refrigeration system;
  • Unique and excellent evaporator technique ensures efficient heat transfer effect;
  • Heavy-duty overhead crane for moving, lifting and tipping the ice cans;
  • Ice can options of galvanized steel or stainless steel;
  • Modular design ensures easy installation, operation and maintenance;
  • Experienced team of installation and commissioning.

Specification of Block Ice Machine LIB-20B

Item Specification Unit
Power supply 380V/3P/50Hz Voltage/Phase/Frequency
Refrigerant R22/R404A
Daily capacity 2000kg/day
Cooling mode Air-cooled
Standard condition Ambient temperature 35
Water inlet temperature 25
Operating power Compressor 6.4 kw
Condenser fan 0.9 kw
Pump 0.25 kw
Average total 9.2 kw
Total install power 12 kw
Compressor Refrigeration capacity 16.8 kw
Condensing temperature 45
Evaporating temperature -18
COP. 2.62 kw/kw
Horse power 12 HP
Ice size range Weight range 10~100 kg
Thickness range 100/125/160/220 mm
Height range 600/800/1000 mm

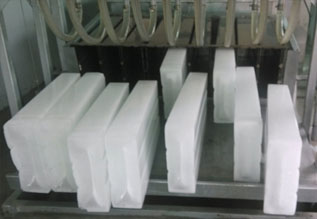

Ice specification Dimension 340×125×750 (L×W×H)(mm)
Weight 25 kg
Ice quantity 28 pc
Harvest times 3 times/day
Period Ice making time 8 hr/time
Ice defrost time 10 min/time
Ice machine dimension Size 4698×1437×2871 (L×W×H)(mm)
Net weight 2015 kg
Pipe size 3/4'' inch
Water supply pressure requirement 1~6 bar
Parts info Compressor Copeland, United States
Expansion valve ALCO, United States
Stop valve DANFOSS, Denmark
Solenoid valve DANFOSS, Denmark
Filter ALCO, United States
Button/indicator Schneider, France
Electrical Schneider, France

Note: Actual Production= Theory Production×WT×AT

Linsky ice machine production will be affected by environment. The main factors are ambient temperature and water inlet temperature. Based on long term actual experiment, Linsky records precise experiment data and conclude chart WT and AT.

When water inlet temperature exceeds 30℃, it is suggested to pre-cool the water by chiller.
When ambient temperature exceeds 45℃, it is suggested to use water-cooled condenser or tailor made your machine.
